Под заказ

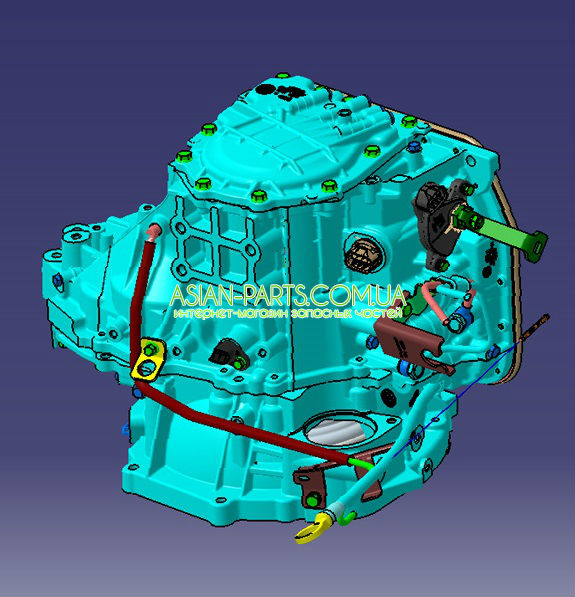

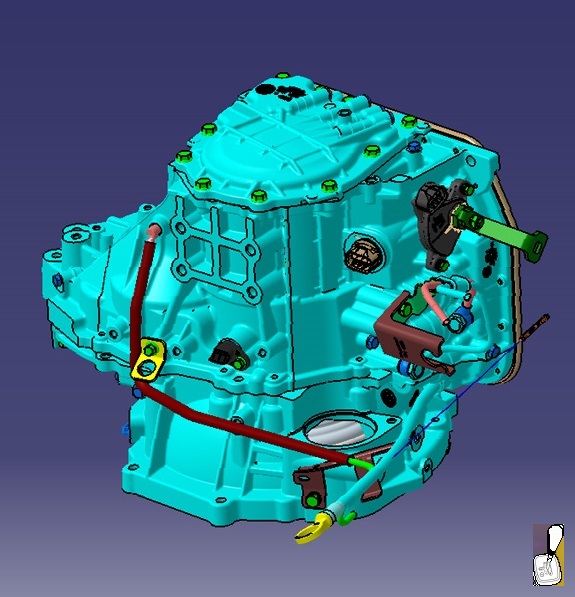

АКПП Chery Tiggo 2 416aha-1500010ea - Информация

коробка автомат чери тигго 2

Part NumberPart NamePart NumberPart Name
1
416AHA-1500010EA TRANSMISSION ASSY62416AHA-1502159BACLIP RING-B1&B2 BRAKE PAD SET
2416AHA-1500022DOWN BAFFLE OF TC HOUSING63416AHA-1502161TRACK WASHER-PLANETARY PINION CARRIER
3416AHA-1501010TORQUE CONVERTER64416AHA-1502162TRACK WASHER-FR SUN GEAR SET
4416AHA-1502116GASKET-OIL PAN65416AHA-1502163TRACK BEARING-FR SUN GEAR SET
5416AHA-1502111FIXING CLIP66416AHA-1502165BABRAKE FLANGE-B2 BRAKE
6416AHA-1502113BEARING STOP RING66416AHA-1502165BBBRAKE FLANGE-B2 BRAKE
7416AHA-1502114NUT-SHIFT SWITCH66416AHA-1502165BCBRAKE FLANGE-B2 BRAKE
8416AHA-1502115SHIFT ARM66416AHA-1502165BDBRAKE FLANGE-B2 BRAKE
9416AHA-1503110TRANS OIL LEVEL GAUGE PIPE SUB67416AHA-1502166BABRAKE BRAKE PAD-B2 BRAKE
9416AHA-1503110DAPIPE-TRANSMISSION OIL LEVEL GAUGE68416AHA-1502167BABRAKE STEEL FLAKE-B2 BRAKE
9416AHA-1503110EATRANS OIL LEVEL GAUGE PIPE SUB69416AHA-1502168PISTON SLEEVE-B2 BRAKE
10416AHA-1503120TRANS OIL LEVEL GAUGE SUB70416AHA-1502169BACLIP RING-F2 UNILATERALISM CLUTCH
10416AHA-1503120DAROD-TRANSMISSION OIL LEVEL GAUGE71416AHA-1502172RR RETAINING PLATE-RR PLANET GEAR
11416AHA-1503130PIPE72416AHA-1502173TRACK BEARING-RR PLANET GEAR
11416AHA-1503130CAPIPE73416AHA-1502174FR RETAINING PLATE-RR PLANET GEAR
11416AHA-1503130DAPIPE74416AHA-1502175FR SUN GEAR
12416AHA-1503140OIL PIPE75416AHA-1502176TRACK BEARING-FR PLANET GEAR
12416AHA-1503140CAOIL PIPE76416AHA-1502177BACLIP RING-B3 BRAKE FLAKE SET
12416AHA-1503140DAOIL PIPE77416AHA-1502178BABRAKE FLANGE-B3 BRAKE
13416AHA-1503180RUBBER HOSE77416AHA-1502178BBBRAKE FLANGE-B3 BRAKE
14416AHA-1503190PLUG SCREW77416AHA-1502178BCBRAKE FLANGE-B3 BRAKE
15416AHA-1503220SHIFT SWITCH77416AHA-1502178BDBRAKE FLANGE-B3 BRAKE
16416AHA-1502127CLIP77416AHA-1502178BEBRAKE FLANGE-B3 BRAKE
17416AHA-1502128SPRING78416AHA-1502179BABRAKE FLANGE-B3 BRAKE
18416AHA-1502129SPRING79416AHA-1502181BABRAKE STEEL FLAKE-B3 BRAKE
19416AHA-1502131SPRING80416AHA-1503320UNILATERALISM CLUTCH-F2
20416AHA-1502132PARKING CLAW81416AHA-1504113BOWL FLAKE
21416AHA-1502133SHAFT-PARKING CLAW82416AHA-1502112BRACKET SET-FLEXIBLE SHAFT
22416AHA-1502134SPRING-PARKING CLAW83416AHA-1502123COVER PLATE-ELASTIC STEEL FLAKE
23416AHA-1502135SHIFT SHAFT84416AHA-1504115LOCK CLIP
24416AHA-1502137GUARD-ELASTIC PIN85416AHA-1504116BOWL FLAKE
25416AHA-1502138CLIP86416AHA-1506000INPUT SHAFT
26416AHA-1502141GEAR-PARKING CLAW87416AHA-1506111SEAL RING
27416AHA-1502142BRACKET-PARKING CLAW88416AHA-1506114O RING
28416AHA-1502144TRACK BEARING89416AHA-1507000CLUTCH INR HUB
29416AHA-1502145TRACK BEARING90416AHA-1508000RR COVER
30416AHA-1502211WASHER91416AHA-1508114BASEAL RING-C3 CLUTCH OTR HUB
31416AHA-1504114GEAR PIPE-FINAL DRIVE92416AHA-1509000MD SHAFT
32416AHA-1502118OIL PAN93416AHA-1511000INR HUB SET-C2 CLUTCH
33416AHA-1502119MAGNET94416AHA-1512000RR SUN GEAR SET
34416AHA-1502212WASHER95416AHA-1513000UNILATERALISM CLUTCH-F1
34416AHA-1503112O RING96416AHA-1514000B2 BRAKE ASSY
35416AHA-1502124LOCK CLIP-OIL TEMPERATURE SENSOR97416AHA-1515000RR PLANET GEAR
36416AHA-1502125WASHER98416AHA-1515127FR GEAR RING
37416AHA-1503122O RING99416AHA-1515128BACLIP RING-FR GEAR RING
38416AHA-1502126WASHER100416AHA-1519112AAADJUSTING WASHER-OUTPUT FR BEARING
39416AHA-1502122ELASTIC STEEL FLAKE SET100416AHA-1519112ABADJUSTING WASHER-OUTPUT FR BEARING
40416AHA-1502139OIL SEAL-SHIFT SHAFT100416AHA-1519112ACADJUSTING WASHER-OUTPUT FR BEARING
41416AHA-1502151TRACK BEARING-RR CLUTCH OTR HUB100416AHA-1519112ADADJUSTING WASHER-OUTPUT FR BEARING
42416AHA-1502152RR RETAINING PLATE-C2 CLUTCH INR HUB100416AHA-1519112AEADJUSTING WASHER-OUTPUT FR BEARING
43416AHA-1502153TRACK BEARING-C2 CLUTCH INR HUB100416AHA-1519112AFADJUSTING WASHER-OUTPUT FR BEARING
44416AHA-1502154FR RETAINING PLATE-C2 CLUTCH INR HUB100416AHA-1519112AGADJUSTING WASHER-OUTPUT FR BEARING
45416AHA-1504111CONVERTER HOUSING100416AHA-1519112AHADJUSTING WASHER-OUTPUT FR BEARING
45416AHA-1504111XCONVERTER HOUSING100416AHA-1519112AIADJUSTING WASHER-OUTPUT FR BEARING
46416AHA-1502155RR TRACK BEARING-RR SUN GEAR101416AHA-1704000OIL PUMP
47416AHA-1503230Фильтр масляный АКПП102416AHA-1704111FR OIL SEAL-OIL PUMP
48416AHA-1503240WIRING HARNESS103416AHA-1704112O RING
49416AHA-1503250STEEL BALL104416AHA-1704115SEAL RING
50416AHA-1503260ACCUMULATOR PISTON105416AHA-1709000VALVE BLOCK
51416AHA-1503264O RING106416AHA-1709213O RING
52416AHA-1503270ACCUMULATOR PISTON107416AHA-2302000OUTPUT SHAFT
53416AHA-1503272O RING108416AHA-2303000DIFFERENTIAL
54416AHA-1503280ACCUMULATOR PISTON109416AHA-2303112DRIVEN GEAR-FINAL DRIVE
55416AHA-1503283O RING110416AHA-4004011AA10TRANSMISSION LUBRICATION OIL
56416AHA-1503284O RING111416AHA-1500021UP BAFFLE TC HOUSING
57416AHA-1503290PANEL-SHIFT SWITCH112513EHC-1703621SPEED SENSOR-INPUT SHAFT
58416AHA-1503310SHAFT-PARKING CLAW113525MHA-1701203LH OIL SEAL-DIFFERENTIAL
59416AHA-1502156BABRAKE STEEL FLAKE-B1 BRAKE113525MHA-1701205RH OIL SEAL-DIFFERENTIAL
60416AHA-1502157BABRAKE PAD-B1 BRAKE114A13-1502113BRACKET-OIL PIPE CLIP
61416AHA-1502158BABRAKE FLANGE-B1 BRAKE115A13-1503130OIL INLET COOLING PIPE
61416AHA-1502158BBBRAKE FLANGE-B1 BRAKE116A13-1503140OIL OUTLET COOLING PIPE
61416AHA-1502158BCBRAKE FLANGE-B1 BRAKE
61416AHA-1502158BDBRAKE FLANGE-B1 BRAKE

Рекомендации по проведению диагностики и обслуживания АКПП QR416AHA выложены в блоге по ремонту на сайте.
